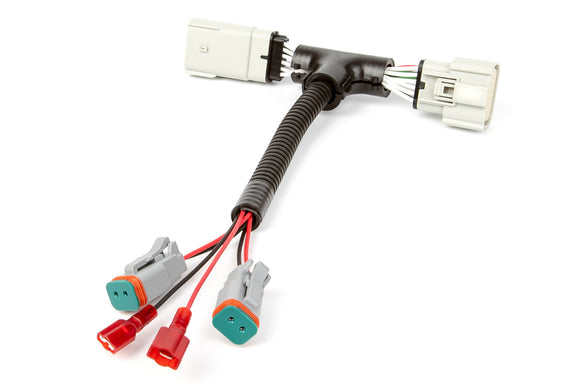

Ford F150 C431 Inline Y-Adapter for Exterior Illumination (2015-2020)

If you need a seamless way to connect exterior LED lighting to your 2015-2020 F150, this adapter makes it simple. The C431 Inline Connector is found beneath the rear bumper of all 2015+ Ford F150’s.

Features and Benefits:

• Allows you to connect lighting accessories to the +12v puddle lamps circuit (CLN25 – AKA ‘Kerb Illumination’) and ground circuit (GD406) seamlessly. No need to cut or splice into your factory wiring!
• The Starkey Y-Adapter utilizes genuine OEM connectors used by Ford on the C431 Inline connection.
• Each Y-Adapter has (2) Deutsch DT-Series Plug Outputs and (1) Quick-Connect Output.
• Once your lighting accessory is connected, it will come ON automatically when the truck is unlocked with the key FOB, and will fade to OFF when the truck is started or doors are locked.
• Assembled in the USA!

• 2015-2020 F150*

*Your truck MUST be pre-wired for the CLN25 Circuit and GD406 Circuit in order for this adapter to provide power to your accessories. All trucks equipped with the Trailer Assist Lamp, as well as most trucks with a factory-installed tow package are pre-wired. To determine if your truck is pre-wired, check the C431 inline connector. On at least one of the plugs, Pin #6 (Black with Yellow Stripe) and Pin #7 (White with Green Stripe) must both be present for this adapter to work. If they are not, you will also need Starkey #4572 Power Extension Wiring.

What’s Included:

• Plug-N-Play Y-Adapter

Technical Specifications:

• Max Continuous Amp Draw: 5
• For 12v Accessories

Installation:

• Installation difficulty = Very Low
• Installation time = 5 Minutes
